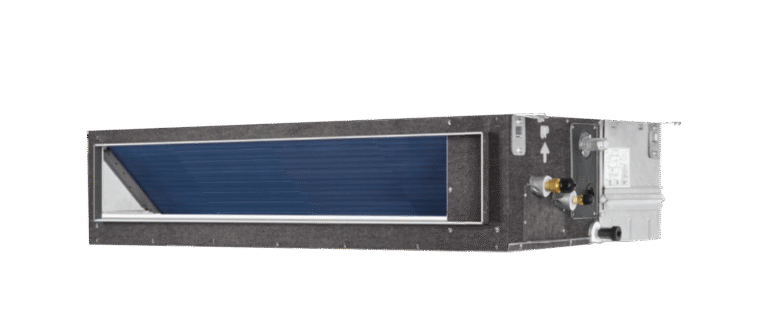

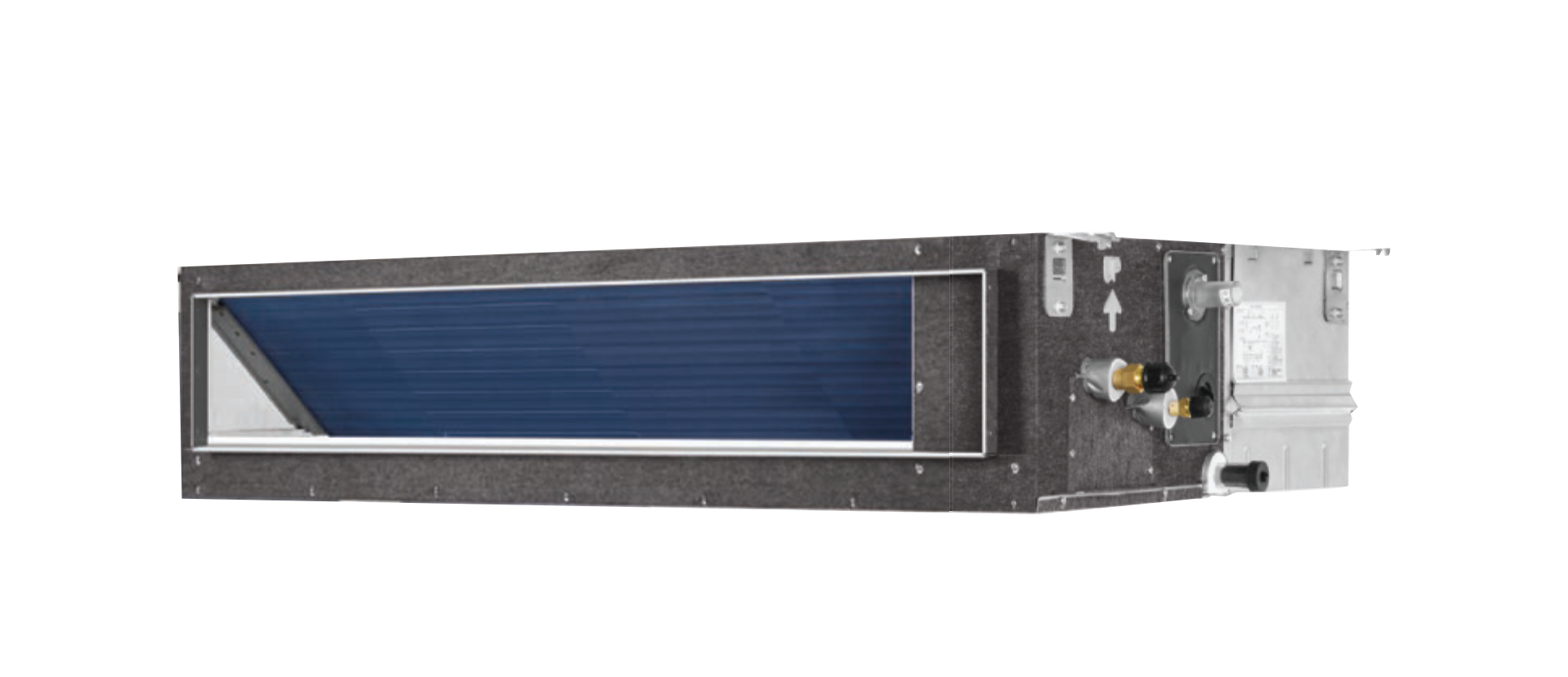

TASAKI - FDMH Medium ESP Ducted Indoor Units
Slim medium ESP ducted indoor units for VRF systems with compact casing, flexible duct connection, quiet operation, EXV control and built in drain pump
FDMH
TASAKI - FDMH Medium ESP Ducted Indoor Units
Slim medium ESP ducted indoor units for VRF systems with compact casing, flexible duct connection, quiet operation, EXV control and built in drain pump
Download PDF
General Performance Range
- Heating Capacity: 1.7 – 16.3 Kw
- Cooling Capacity: 1.5 – 14 Kw
- Air flow: 424 – 2,000 M3/hr
- External Static Pressure: 50 – 100 Pa
Download PDF
General Performance Range(Eurovent-rated values)
General Performance Range
- Heating Capacity: 1.7 – 16.3 Kw
- Cooling Capacity: 1.5 – 14 Kw
- Air flow: 424 – 2,000 M3/hr
- External Static Pressure: 50 – 100 Pa
Features & Benefits
Features & Benefits
Built in Drain Pump
Integrated high head drain water pump lifts condensate to the ceiling drain line, simplifying piping design and helping to protect interior finishes from leaks.
Compact Medium ESP
New compact body with only 360 mm height and medium ESP design fits easily into ceiling voids while still allowing ducted distribution to several grilles.
Clean Air Function
Clean air mode and washable filter help capture dust and fine particles inside the return plenum, supporting better indoor air quality and easy routine maintenance.
Flexible Duct Layout
Rear discharge and rectangular outlet make it simple to connect supply ducts in different directions, adapting to corridors, perimeter zones and multi-room layouts.
EXV Refrigerant Control
Built in electronic expansion valve works with VRF outdoor units to regulate refrigerant flow precisely, improving part load efficiency and temperature stability.
Static Pressure Flexibility
Adjustable external static pressure lets FDMH serve longer duct runs with multiple diffusers while keeping airflow balance and room comfort stable.
Low Ambient Ready
Designed for cooling operation down to about -5°C and heating down to about -20°C outdoor temperature, making FDMH suitable for cold climate VRF projects.
Quiet Ducted Comfort
Optimized fan and casing design reduce turbulence in the duct, delivering comfortable airflow with low sound levels suitable for bedrooms and office areas.
Main Applications
- Open plan offices, meeting rooms and call centers with medium duct runs and multiple diffusers
- Retail stores, supermarkets, showrooms and restaurants needing even airflow across larger open areas
- Lobbies, corridors and public zones in hotels, hospitals, universities and other commercial buildings using concealed medium ESP ducted units
Extra Benefits
- On-Off card, group control and central control enable easy integration with hotel key systems and basic BMS
- Clean air function, 24-hour timer and auto restart support comfort scheduling and safe restart after power cuts
- Auto restart and 3-minute compressor protection help ensure safe restart after power cuts and protect the system against frequent start ups
Main Applications
- Open plan offices, meeting rooms and call centers with medium duct runs and multiple diffusers
- Retail stores, supermarkets, showrooms and restaurants needing even airflow across larger open areas
- Lobbies, corridors and public zones in hotels, hospitals, universities and other commercial buildings using concealed medium ESP ducted units
Extra Benefits
- On-Off card, group control and central control enable easy integration with hotel key systems and basic BMS
- Clean air function, 24-hour timer and auto restart support comfort scheduling and safe restart after power cuts
- Auto restart and 3-minute compressor protection help ensure safe restart after power cuts and protect the system against frequent start ups
Certifications
Certifications
Certifications
Officially available in Armenia through Patrick LLC, the authorized sales and after-sales service representative of Tasaki (Thailand)
