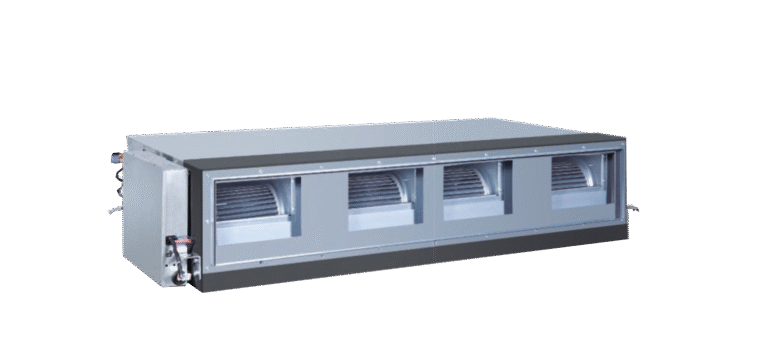

TASAKI – VFAH Ducted Fresh Air Indoor Units
Ducted fresh air indoor units for VRF systems supplying pre-conditioned outdoor air with adjustable static pressure, low ambient operation, clean air function and EXV control
VFAH
TASAKI – VFAH Ducted Fresh Air Indoor Units
Ducted fresh air indoor units for VRF systems supplying pre-conditioned outdoor air with adjustable static pressure, low ambient operation, clean air function and EXV control
Download PDF
General Performance Range
- Heating Capacity: 8.9 – 17.8 Kw
- Cooling Capacity: 14 – 28 Kw
- Air flow: 1,600 – 2,800 M3/hr
- External Static Pressure: 100 – 200 Pa
Download PDF
General Performance Range(Eurovent-rated values)
General Performance Range
- Heating Capacity: 8.9 – 17.8 Kw
- Cooling Capacity: 14 – 28 Kw
- Air flow: 1,600 – 2,800 M3/hr
- External Static Pressure: 100 – 200 Pa
Features & Benefits
Features & Benefits
Clean Air Function
Clean air mode together with washable filters helps capture dust and fine particles from outdoor air, supporting better indoor air quality and easier routine maintenance.
Dedicated Fresh Air Supply
VFAH units are designed to introduce outdoor fresh air into VRF systems, preconditioning ventilation air before it is distributed to the occupied spaces.
Built in Drain Pump
Factory mounted drain pump lifts condensate to the ceiling drain line, simplifying drainage design and reducing the risk of leaks in finished spaces.
Adjustable Static Pressure
Selectable external static pressure from about 100 to 200 Pa helps overcome duct and filter resistance in fresh air ductwork and keeps design airflow at supply grilles.
Low Ambient Operation
Design supports cooling operation down to about -5°C and heating down to about -20°C outdoor temperature so fresh air can be tempered even in cold climate projects.
Central Fresh Air Supply
Wide fresh air-cooling capacity and airflow range across the VFAH lineup makes it suitable for medium size commercial zones that require centralized fresh air supply alongside VRF indoor units.
Blue Fin Coil Protection
Blue fin anti corrosion coating on the heat exchanger improves resistance to moisture and pollutants from outdoor air, helping maintain capacity and extend coil service life in continuous fresh air applications.
EXV Refrigerant Control
Built in electronic expansion valve works with VRF outdoor units to meter refrigerant accurately, improving part load efficiency and keeping coil temperature stable.
Main Applications
- Office buildings, banks and retail projects using VRF for room loads and ducted fresh air for common areas
- Hotels, conference venues and restaurants needing centralized fresh air to corridors, lobbies and halls
- Schools, hospitals and other public buildings requiring mechanical fresh air ventilation with the VRF system
Extra Benefits
- On Off card, group control and central control allow easy integration with floor controllers, key card systems and basic BMS.
- Clean air function and 24-hour timer help align fresh air delivery with occupancy and reduce unnecessary running hours.
- Auto restart and 3-minute compressor protection ensure safe restart after power cuts and protect the refrigeration circuit.
Main Applications
- Office buildings, banks and retail projects using VRF for room loads and ducted fresh air for common areas
- Hotels, conference venues and restaurants needing centralized fresh air to corridors, lobbies and halls
- Schools, hospitals and other public buildings requiring mechanical fresh air ventilation with the VRF system
Extra Benefits
- On Off card, group control and central control allow easy integration with floor controllers, key card systems and basic BMS.
- Clean air function and 24-hour timer help align fresh air delivery with occupancy and reduce unnecessary running hours.
- Auto restart and 3-minute compressor protection ensure safe restart after power cuts and protect the refrigeration circuit.
